Electric Scooter Moped Adjustable 061-LIN CAN Bus Communication DKD Speedometer 48V-84V LCD Instrument Speed Display for VOTOL Controller and Fardriver Controller

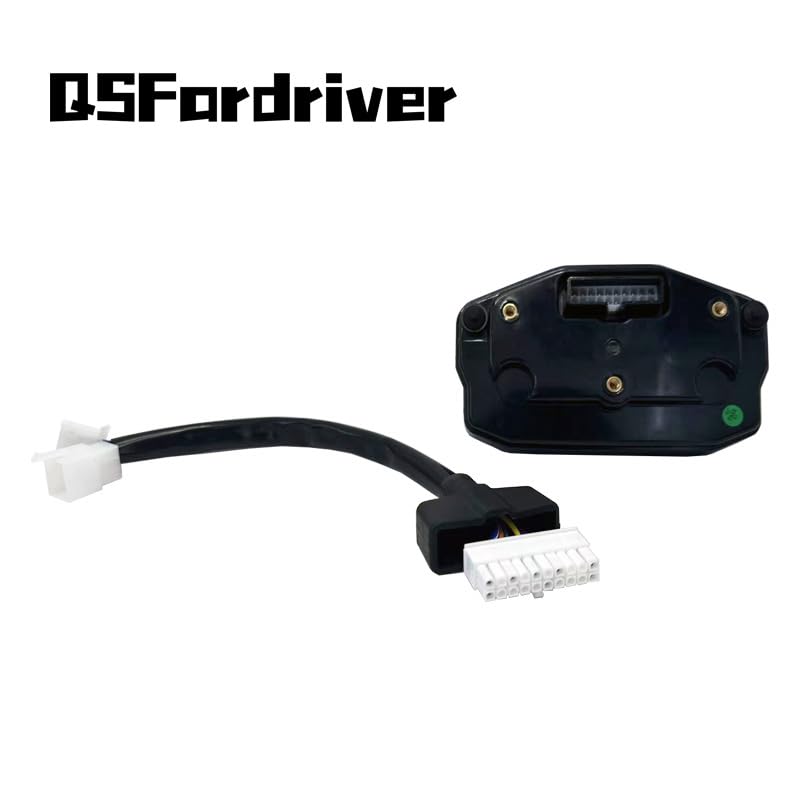

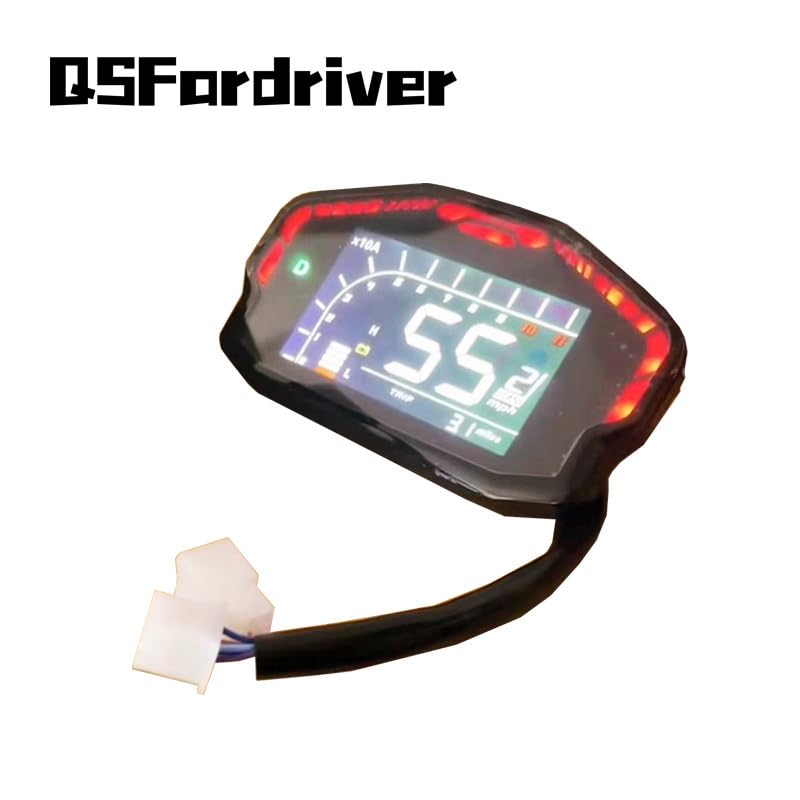

One set including below kits 1pc x DKD LCD speedometer DKD Adjustable KMH/MPH ONE-LIN/CAN-BUS Communication Electric Scooter Moped Speedometer DisplaySpeedometer Type: One-LIN protocol/CAN-BUS ​Battery Voltage: Rated 48V-84V ​Displays data: Speed KMH/MPH, DC current, Battery Level, Trip Distance,Fault Display, Head Light, Turning Light,Gear Display. NOTICEThis display can ONLY match with VOTOL controller and FarDriver controller what we sell, other brand controller may not work properly. Parameter adjustable setting code 1) After power on, the self-test of the display is completed, then press and hold the left button for 10 seconds to enter the background and enter the password; 2) Left-click to adjust data, right-click to shift; 3) Password 153, set the perimeter(mm), the number of motor pole pairs, the offset, the unit mm is CC 1413mm (18inch tire perimeter) by default, after the setting is completed, long press the right button to enter the number of motor pole pairs(PL 24-10, pole pair number 24 by default) and offset(10); 4) Password 256, high and low gear (E, S gear) and normal gear selection, -2 is high and low gear, -0 is normal gear display; 5) Password 372, clear ODO, limited to 3 times; 6) Password 856, 48V, 60V, 72V, 96V for selection, synchronized with the grid number, the lithium battery automatically takes the SOC, and automatically switches. If the lithium battery is changed to the other battery, and it must be powered on again; 7) Password 879, fixed voltage calibration, 48V, 60V, 72V, 96V, corresponding to the volatge setting; 8) Password 824, self-input voltage calibration; 9) Password 974, KMH/MPH switch setting; 10) Password 928, D gear light, N gear light off setting, can be turned off when only the liquid crystal display gear is needed. 11) Password 919, to change the value of overvoltage and undervoltage. Front is overvoltage, back is undervoltage.

• DKD Adjustable KMH/MPH ONE-LIN/CAN-BUS Communication Electric Scooter Moped Speedometer DisplaySpeedometer Type: One-LIN protocol/CAN-BUS ​Battery Voltage: Rated 48V-72V ​Displays data: Speed KMH/MPH, DC current, Battery Level, Trip Distance,Fault Display, Head Light, Turning Light,Gear Display.
